RP-2

RP-2 REMOTE-CONTROLLED FULLY DISCRETE CLASS-A DUAL-CHANNEL MIC PREAMP

Description

HUM Audio Devices RP-2 is transformer balanced, fully discrete Class-A design equipped with remote controller. The connection between preamp box and controller requires only one standard XLR cable so it’s very convenient in use. Gain circuit uses photo cells to control the levels so there is full separation between audio path and remote signal.

RP-2 preamp offers massive, dynamic sound with lots of sonic details.
It’s great for all types of mics, especially ribbons because of very low self-noise.

Features

• FULLY DISCRETE CLASS-A DUAL-CHANNEL MIC PREAMP
• VERY LOW SELF-NOISE
• REMOTE-CONTROLLED VIA STANDARD XLR CABLE
• AIR BOOST PULTEC STYLE HIGH FREQUENCY BOOSTER
• TRANSFORMER BALANCED
• ADDITIONAL HIGH IMPEDANCE INSTRUMENT/LINE TRS INPUTS
• TRANSFORMER BASED
• M/S DECODER
• ANTI-THUMP PHANTOM POWER SWITCHING SYSTEM
• THD+N: 0,027% AT 60DB GAIN
• PHANTOM POWER +48V
• PAD -20DB
• M/S MATRIX Passive transformer based M/S to Stereo decoder
• LOW CUT FILTER 50HZ (6DB/OCT)
• AC MAINS POWER INTERNALLY SWITCHABLE 240V/120V (50HZ - 60HZ)
• FREQUENCY RESPONCE: 20HZ - 50KHZ (+/-0,4DB)
• ADDITIONAL HIGH IMPEDANCE INSTRUMENT/LINE TRS INPUTS
• AIR BOOST Passive Pultec Style shelf high frequency booster
• GAIN RANGE 20DB - 60DB
• PHASE INVERSION
• CUSTOM MADE CABLES

Components

• RP-2 Preamps

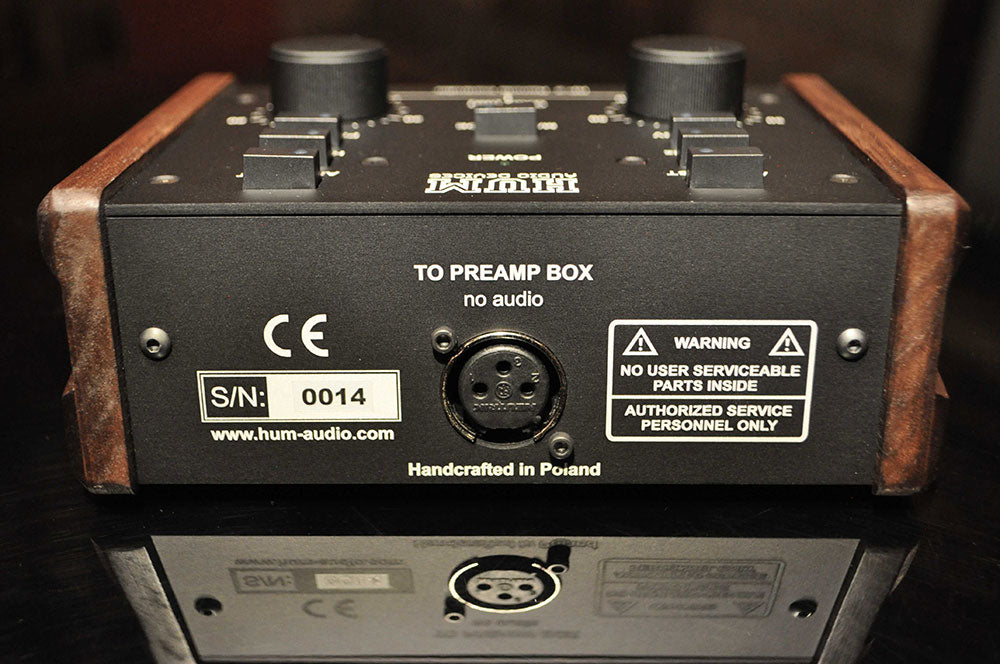

• RP-2 Remote Control Unit
• RP-2 Power Supply Unit
• Custom made cables (remote, psu, mains)
• Mic head dust protection cover
• Flight case
