ARM-1S

ARM-1S PHANTOM POWERED ACTIVE RIBBON MICROPHONE (1″ RIBBON)

Description

HUM Audio Devices ARM-1S is Phantom powered active ribbon microphone equipped with 1″ long, 1.8u thick ribbon element.Output signal level is higher comparing to passive ribbon mics because of fully discrete active stage.

High-end class electronic components and manufacturing techniques allowed us to achieve very low noise floor and detailed rich sound.

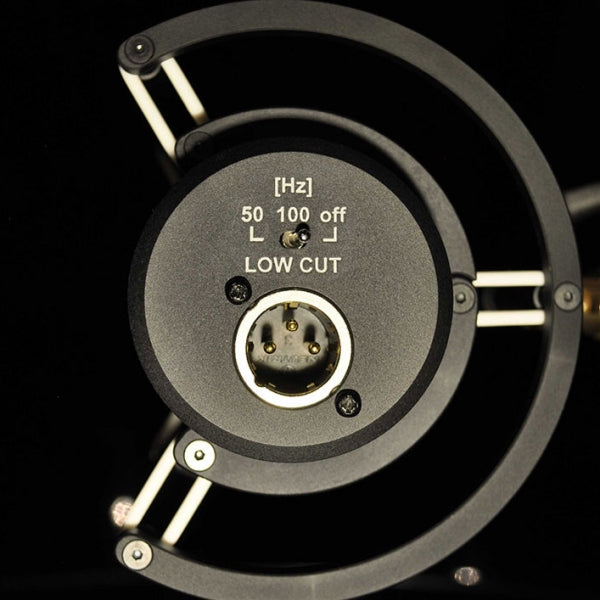

It’s also equipped with switchable low cut filter (50/100 Hz)

Features

• PHANTOM POWERED ACTIVE RIBBON MIC
• DETAILED RICH SOUND
• 1″ LONG, 1.8U THICK RIBBON ELEMENT
• VERY LOW SELF-NOISE
• SWITCHABLE
• LOW CUT FILTER
• FULLY DISCRETE DESIGN
• RIBBON ELEMENT: 1" LONG (1,8U ALUMINUM FOIL)
• POLAR PATTERN: FIGURE-8
• SUPPLY: PHANTOM +48V (+/- 5V)
• FREQUENCY RESPONSE: 40HZ - 14KHZ (+/-3DB)
• SENSITIVITY: -39DB (1V/PA)
• MAX. SPL: 138DB
• OUTPUT IMPEDANCE: 22 OHM (ELECTRONIC)
• RECOMMENDED LOAD IMPEDANCE: 150 OHM OR GREATER
• HPF: 50HZ/100HZ (6DB/OCT)

Components

• ARM-1S Microphone
• Mic head dust protection cover
• Flight case
